lcp stands for Lightweight Cache & Proxy. It's a backend service I wrote that aggregates, processes, and caches data from several APIs, then exposes that data through its own REST API. It's written in the Go programming language and runs in a Docker container on my CapRover server. The main goal is to make data fetching for my website fast and simple. lcp fetches and processes data ahead of time, so the site can read it directly from memory without waiting for the original APIs. Here's how it works.

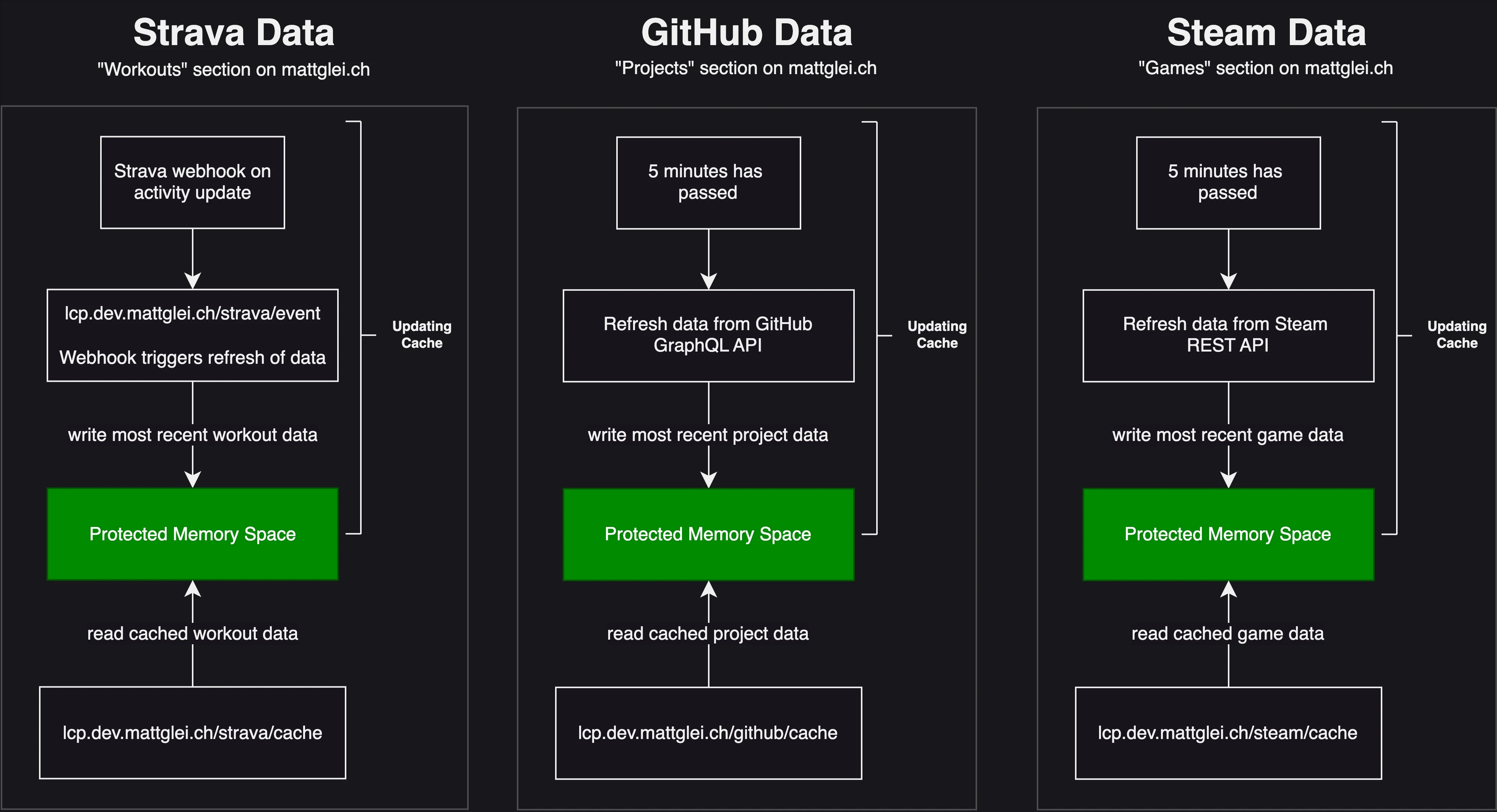

The diagram above shows how lcp refreshes its caches and serves data to the website. Each cache uses one of two refresh strategies:

1. Event-based refreshes

   An event, such as an incoming webhook, triggers a refresh. For example, Strava webhooks notify lcp about activity changes. lcp then fetches data from Strava and Hevy to refresh the combined workouts cache. This lets it pick up changes without waiting for the next polling interval.

2. Time-based refreshes

   A background loop refreshes the cache at regular intervals. For example, the Steam cache waits 10 minutes between refreshes.

Cache refreshes and HTTP requests run concurrently in Go's goroutines. Each cache uses a read/write mutex to coordinate access to its data in memory. Multiple requests can read the cache at the same time, while an update takes an exclusive lock to replace the data safely.

When the data changes, lcp also saves a snapshot to disk and sends the updated data to connected browsers through server-sent events (SSE). The cache's update timestamp records the last change to its data, so a successful refresh that finds no changes leaves that timestamp unchanged.

1. Fast response times

   When the site requests lcp.mattglei.ch/workouts, lcp reads the cached data from memory and returns it as JSON. There are no database queries or upstream API requests to wait for.

2. Process and aggregate data ahead of time

   Steam's API returns a player's achievements for one game at a time. To show achievement progress alongside a list of games, lcp fetches the games and their achievement data, then combines the results. The site can request lcp.mattglei.ch/steam and get everything it needs in one response. For my site, this reduced more than 25 Steam API requests, each taking over 400 ms, to one cached request taking about 200 ms. The upstream requests still happen during refreshes, but visitors don't have to wait for them.

3. Reduce the risk of hitting API rate limits

   Most major APIs have rate limits. For example, Strava's default limits for non-upload requests are 100 requests every 15 minutes and 1,000 per day. Fetching data every time someone visited the site could quickly exhaust that allowance. With lcp, page views read from the cache, so more visitors don't mean more upstream requests. Background refreshes still need to stay within each API's limits.

4. Keep serving data during upstream outages

   If an upstream API is unavailable or a refresh fails, lcp keeps serving the last cached snapshot. The data may be out of date until a refresh succeeds, but the site can still display it. This depends on lcp remaining available and already having a cached copy of the data.

1. Couldn't this be simpler?

   There are simpler ways to load data onto my website. I built lcp for a few reasons:

   • Keeping data fetching and caching separate from the website lets me change frontend frameworks without rebuilding the backend. I like to rebuild my personal website every so often to try a new framework, which is how I ended up on version 5. The previous version used Next.js, for example.
   • I want to use this data in other projects, including the SSH version of this website. A shared backend gives those projects a central place to access the data without depending on the website itself.
   • It had been a while since I'd worked in Go, and I wanted to build another project with it.

2. Why use the Go programming language?

   I've been using Go for a few years and chose it for v2 of lcp for a few reasons:

   • The standard library includes HTTP clients, servers, and JSON encoding, so I can build much of the API without third-party packages.
   • I've been very happy with the performance. Serving data from memory keeps request handling fast, even though I'm not dealing with massive amounts of traffic.
   • I have a lot of experience writing Go and feel comfortable working in the language.

3. Why is lcp on version 2?

   v1 of lcp was written in Rust. I wanted to rewrite it for a few reasons:

   • I wanted a reusable cache implementation. In v1, much of the code was specific to each cache, which led to unnecessary duplication. A generic cache reduced the amount of code and made v2 simpler to maintain.
   • I find Go easier to build APIs with. Rust's Rocket framework helps, but I prefer the simplicity of Go's standard library for this project.
   • v1 used Amazon S3 to store images from Mapbox. I replaced it with a MinIO instance on my CapRover server to avoid a separate storage bill. At the time, MinIO's Go client was stable while its Rust client wasn't, which was another reason to switch to Go.

4. Why mix webhooks and polling?

   Webhooks let lcp fetch fresh data in response to a change, which avoids repeatedly checking for updates. Not every API provides webhooks for the data I need, though. For example, GitHub's webhook events don't cover changes to a user's pinned repositories, which power the projects section. I use polling for those updates, as well as for Steam games and achievements.

5. Why have a separate endpoint for each cache?

   Each cache has its own data source, refresh logic, and endpoint. This makes the application easier to maintain and lets each section of the website load independently.
